Mechanisms Booklet and Exam

Mechanisms Booklet.

This booklet is an excellent resource for enhancing students’ understanding of mechanical systems.

It contains 22 engaging pages tailored for upper Key Stage 3 and GCSE Design and Technology or Engineering students, covering the following key topics:

-What is a Mechanism?
-Types of Motion
-Levers
-Classes of Lever

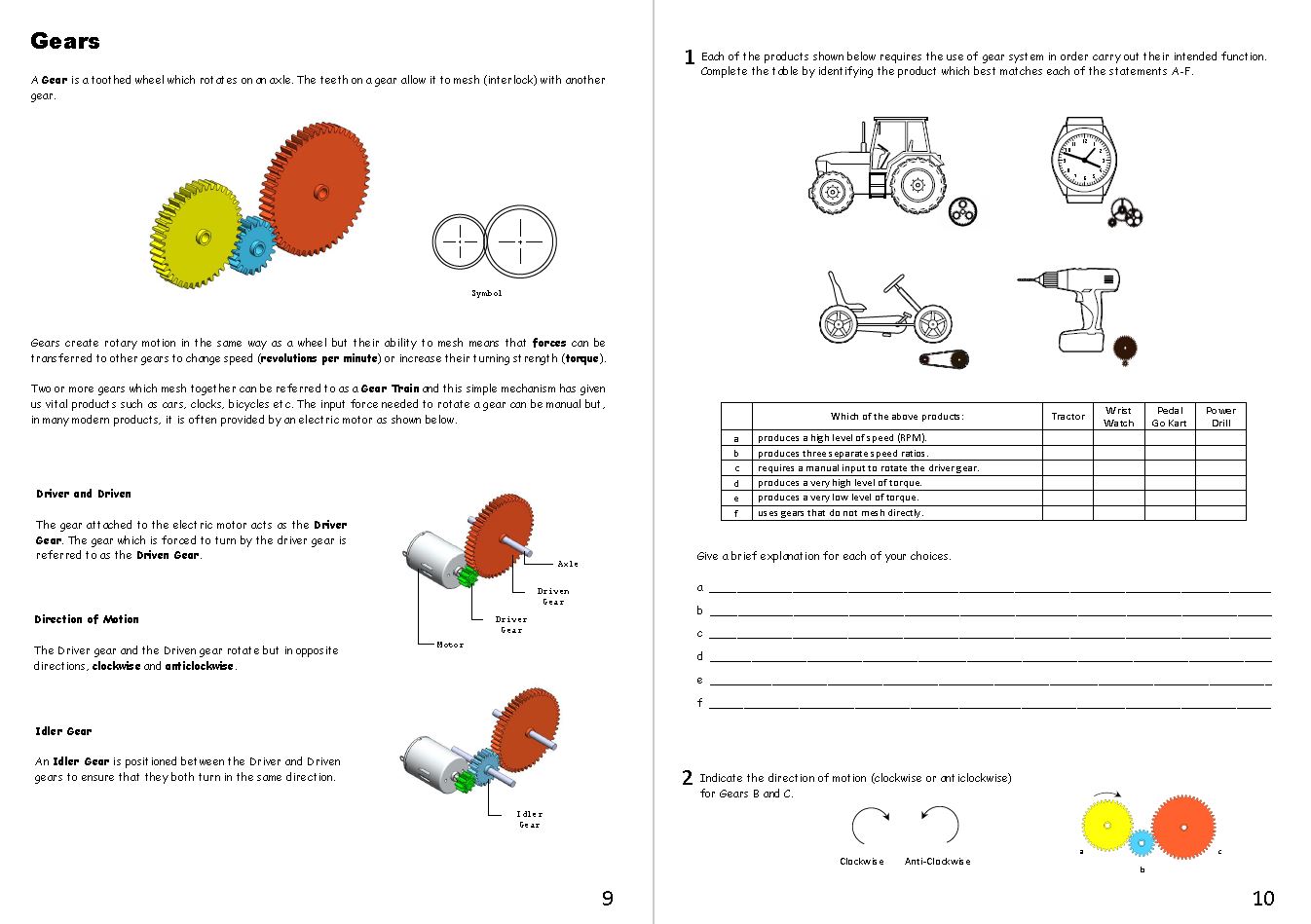

-Gears
-Gear Ratio and Velocity

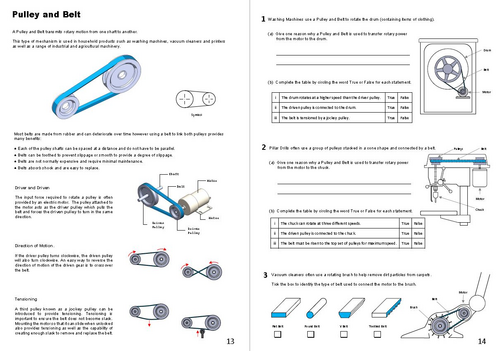

-Pulley and Belt
-Pulley Ratio and Velocity
-Cam and Follower

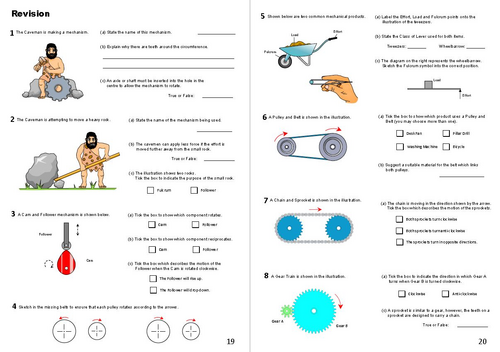

-Revision Questions

All illustrations have been carefully created using 2D and 3D CAD modelling software.

No AI-generated images have been used, ensuring clarity and technical accuracy.

Note:
Topics are presented across dual pages and should be printed back-to-back, with even-numbered pages on the right-hand side for optimal layout and readability.

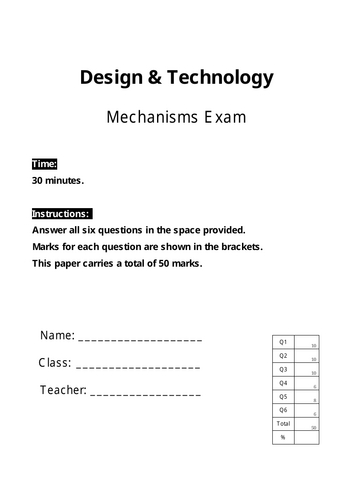

Exam Paper
30 minute exam paper carrying a total of 50 marks.
