LV04 Level 2 Automotive Wheels & tyres and Braking Systems

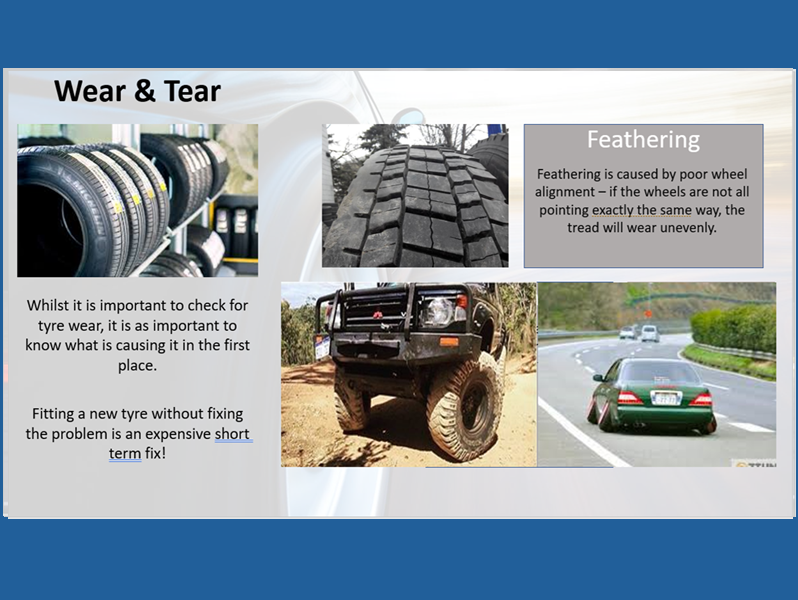

Set of three PowerPoints made for Level 2 Vehicle Maintenance and Repair course - The first covers wheels and tyres . There are 37 slides in total and makes use of the animations that PowerPoint offers

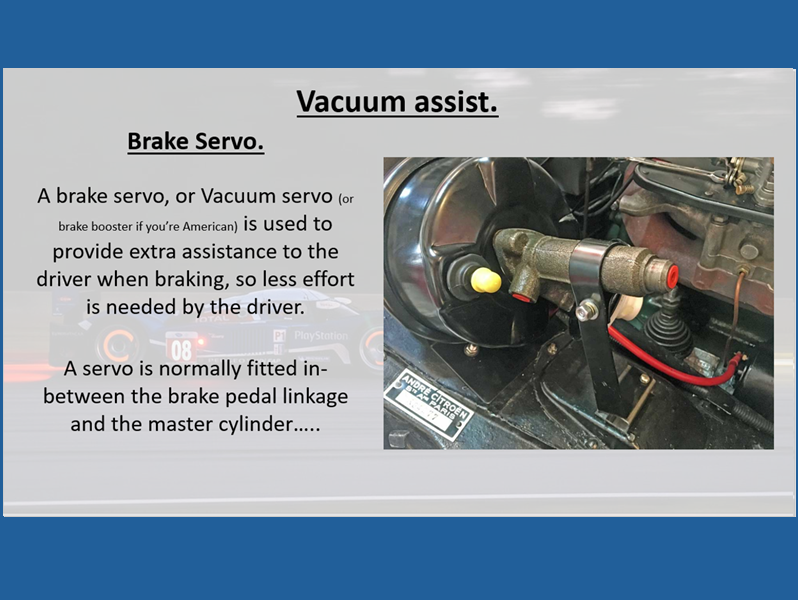

The second has 36 slides and covers braking systems - discs and drums as well as master cylinder, servo, pipes and safety

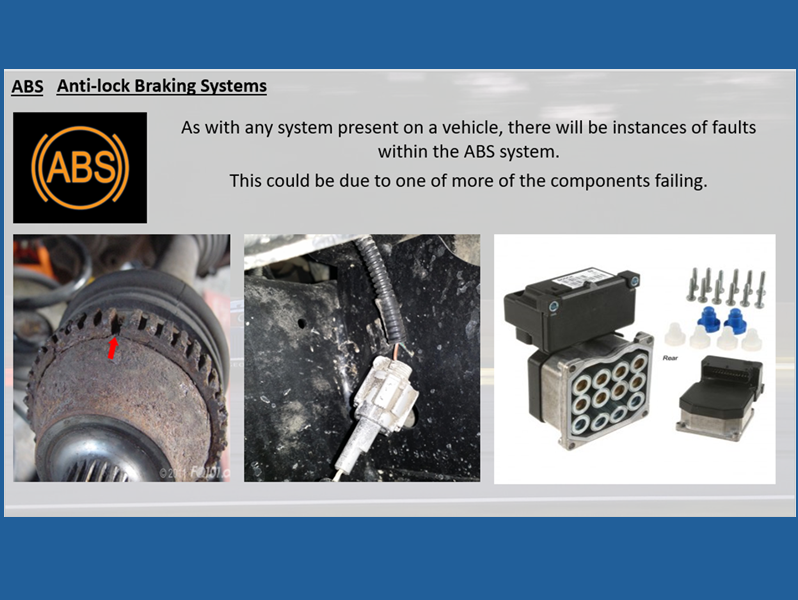

The third has 26 slides and covers the electronic side of a modern braking system - ABS, diagnostics and a brief touch on brake by wire

Be sure to use the slideshow feature or you’ll have a lot of overlapping images.

There are some slides that require answers to be revealed by clicking on the pictures or text - I have pointed these out in the slide comments.

I taught levels 1 up to 3 of Vehicle Maintenance & Repair at a further education college in the UK for 6 years delivering the IMI vehicle qualifications until Jan 2024 before I moved away from education.

I found the resources available to me when I started pretty poor and didn’t engage the students particularly well, so I made my own set of PowerPoints that cover pretty much all of it so far, so thought i’d share some of them up here and see if there’s any takers. If there is, i’ll put them all up and hopefully they’ll come in useful.

I don’t want to charge a ton for these, but a good few hours go into making these PowerPoints so i’m just getting a little back for my time and hopefully they come in useful for others.
