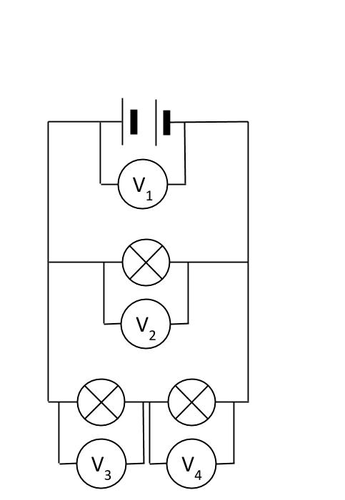

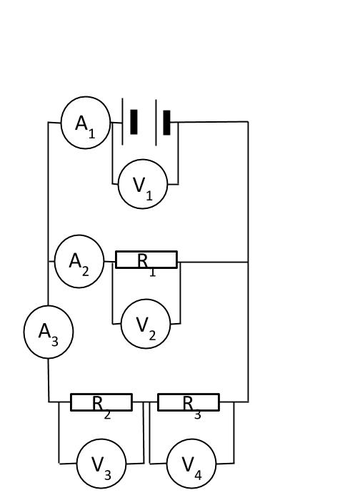

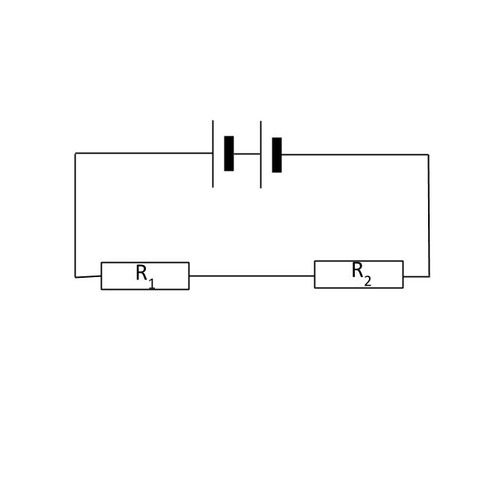

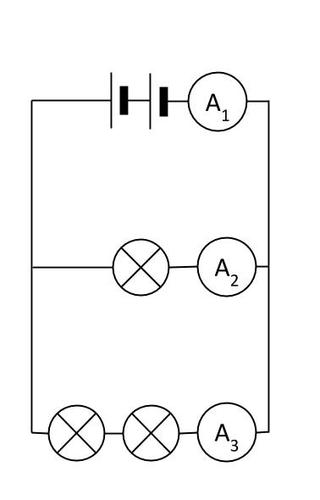

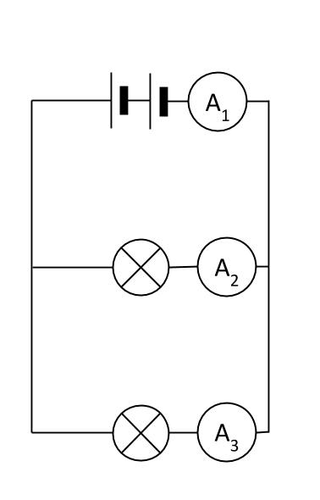

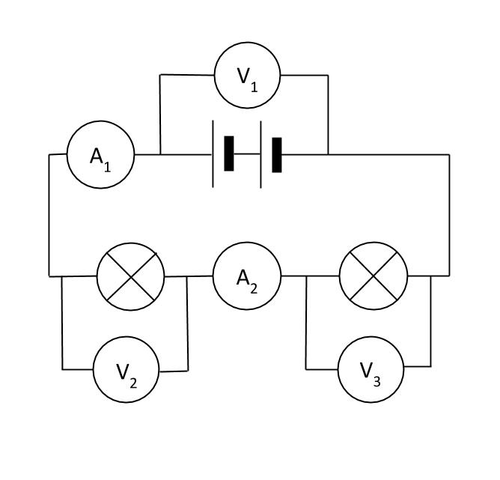

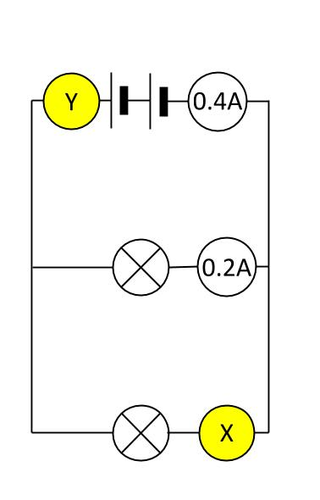

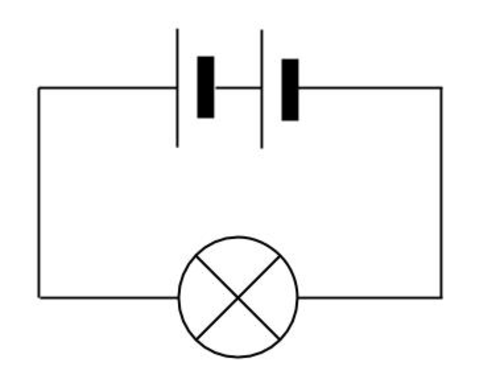

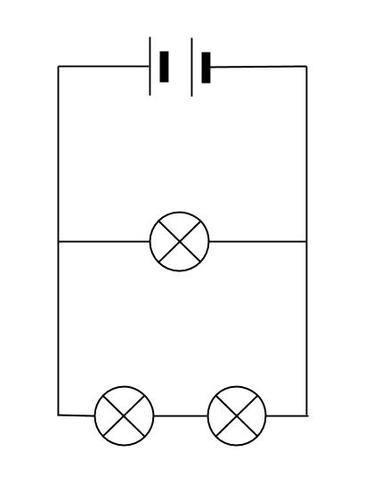

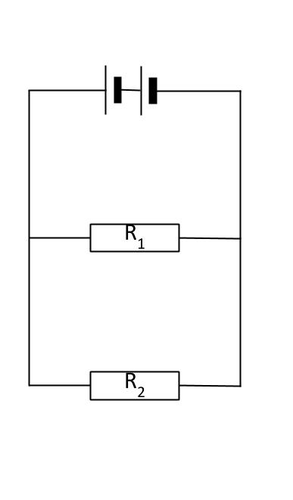

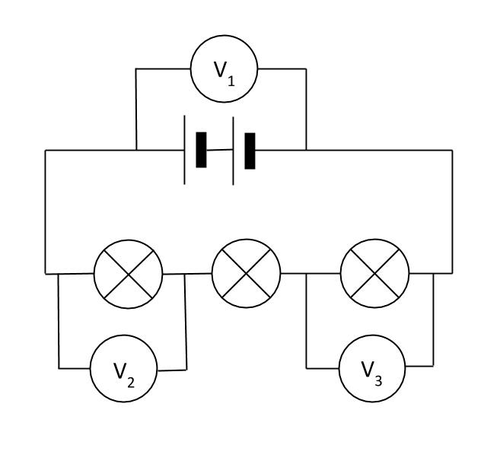

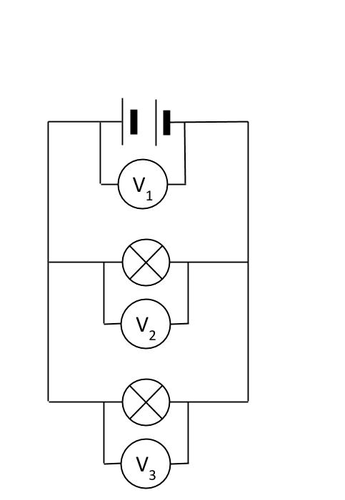

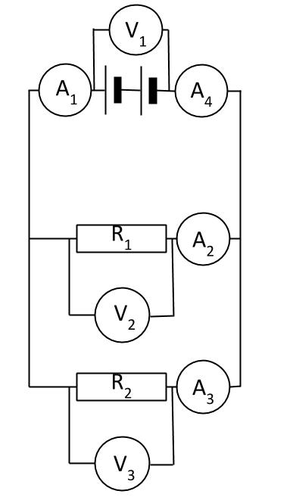

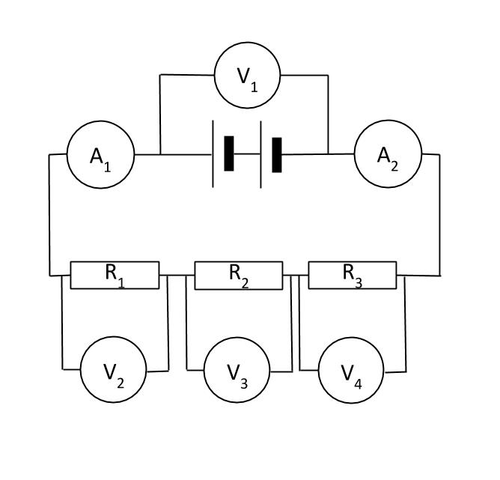

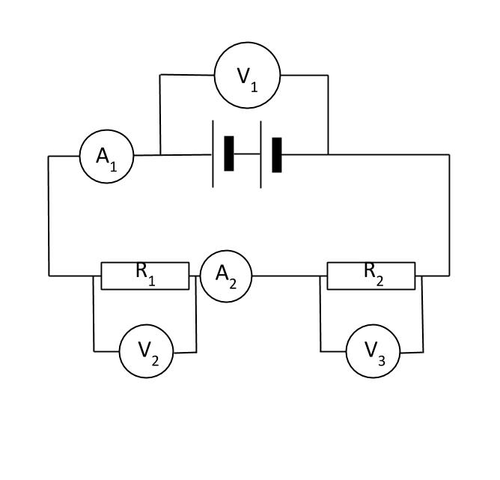

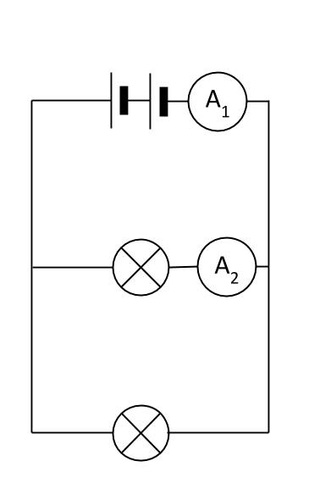

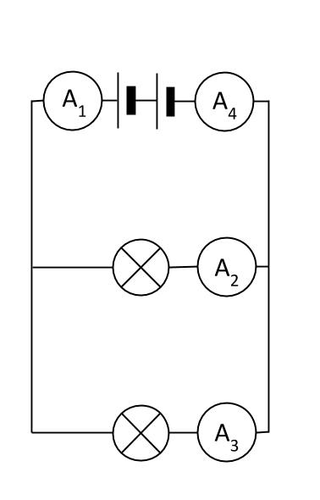

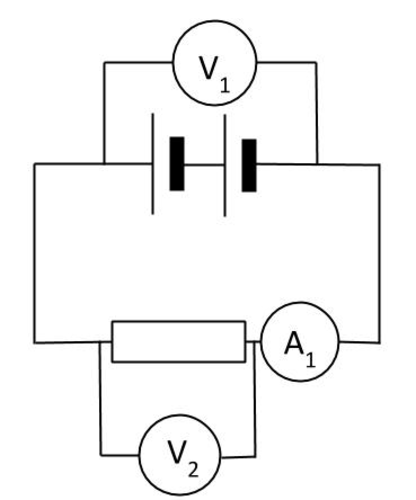

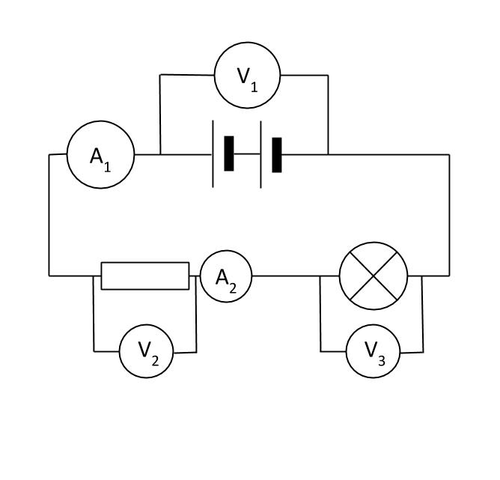

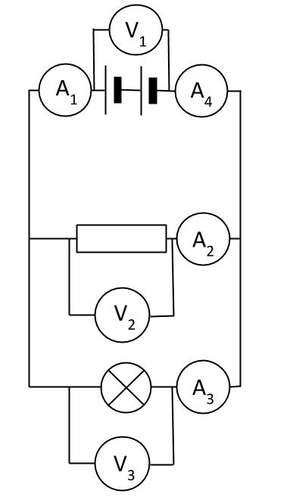

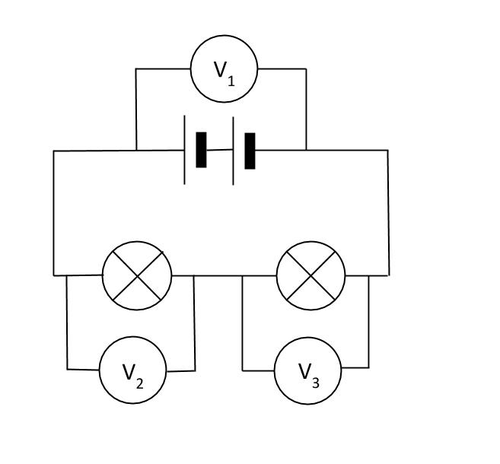

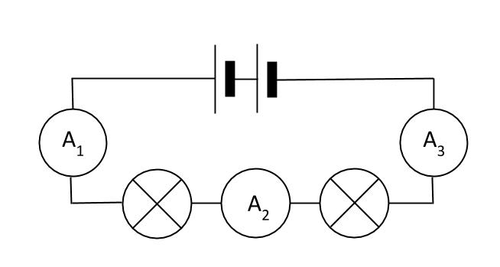

Good for iGCSE, GCSE, MYP, KS3 physics. A library of circuits labelled in folders as series or parallel, with ammeters, voltmeters, both, a some with just bulbs, some with resistors. I have been annoyed about the lack of ‘free to use’ circuit diagrams so here is a small library of them (the link takes you to a series of labelled folders, the files here are unsorted). The images in folders are a down load for illustration purposes, the link will take you to the google folder where you can copy the original google drawings and then edit at will.
Link: https://drive.google.com/open?id=1Ik7w-FxHjScfvustT6vQWKcKx9dEZRmp
Something went wrong, please try again later.
Thank you so very much
This is brilliant. Making worksheets is sooooo annoying without a library of circuit diagrams. Thank you!
