Force Diagrams and Resultant Forces Practice Worksheet

Empower your KS3 and KS4 students to master force diagrams, Newton’s 1st Law, and resultant force calculations with this comprehensive and visually engaging worksheet. Whether you’re following the British curriculum, GCSE, or IGCSE standards, this resource aligns seamlessly with diverse educational needs.

Educational Objectives:

Understand Newton’s 1st Law: Students will develop a clear understanding of balanced and unbalanced forces, exploring how objects behave when forces are equal or unequal through visual representations and real-world scenarios.

Master Force Diagram Drawing: Through guided practice, students will confidently draw force diagrams for various scenarios including stationary objects, moving objects, and terminal velocity situations such as skydivers and aircraft.

Calculate Resultant Forces: Students will apply vector addition skills to calculate resultant forces in multiple directions, determining both magnitude and direction whilst understanding the physical implications of their answers.

Key Features:

Visual Learning Support: The worksheet uses engaging graphics including apples, cars, skydivers, parachutes, and aircraft to help students visualise force concepts and connect abstract ideas to real-world contexts.

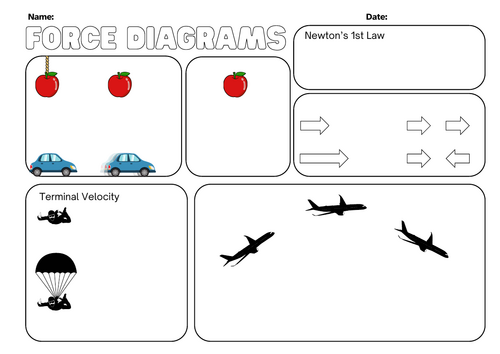

Progressive Difficulty: Page 1 introduces force diagram drawing and Newton’s 1st Law concepts with scaffolded examples, whilst page 2 challenges students with eight increasingly complex resultant force calculations.

Terminal Velocity Application: Students explore the concept of terminal velocity through skydiver scenarios, understanding how balanced forces relate to constant velocity motion in real-world contexts.

Comprehensive Practice: Eight resultant force problems provide extensive practice with vector addition, including balanced forces, unbalanced forces in single directions, and two-dimensional force scenarios.

Enhance your students’ understanding of forces with the “Force Diagrams and Resultant Forces Practice Worksheet.” Download it now to inspire confidence and academic success in your science and maths studies!
