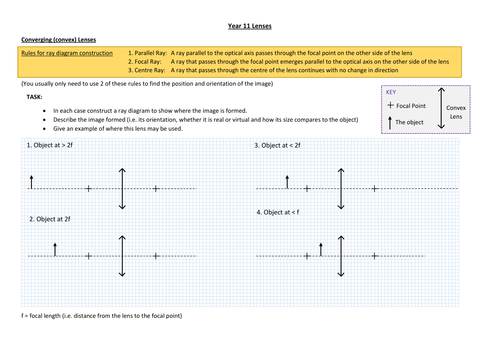

A worksheet to construct ray diagrams to show where images are formed by a converging (convex) lens and a diverging (concave lens). Aimed at AQA GCSE Physics P3. Although may also be useful for other boards/A-Level

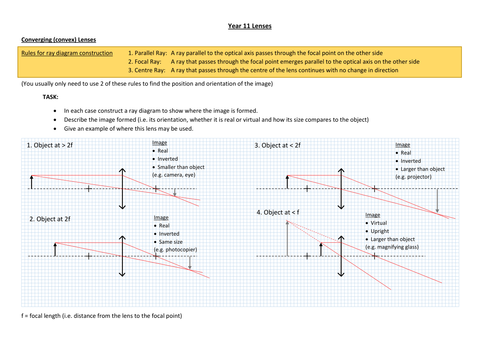

Answer sheet available!

Both word and pdf worksheets available.

Feedback greatly received - particularly constructive ways to improve.
