iGCSE Physics - 4.4 Electrical Safety

**This Powerpoint specifically covers all criteria for –
Unit 4.4 Electrical Safety
**

State the hazards of:

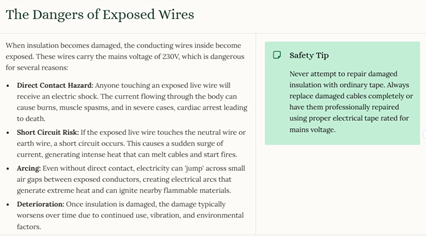

(a) damaged insulation
(b) overheating cables
© damp conditions
(d) excess current from overloading of plugs, extension leads, single and multiple sockets when using a mains supply

Know that a mains circuit consists of a live wire (line wire), a neutral wire and an earth wire and explain why a switch must be connected to the live wire for the circuit to be switched off safely

Explain the use and operation of trip switches and fuses and choose appropriate fuse ratings and trip switch settings

Explain why the outer casing of an electrical appliance must be either non-conducting (double-insulated) or earthed

State that a fuse without an earth wire protects the circuit and the cabling for a double insulated appliance

**Every Powerpoint includes learning objectives, a starter and plenary, suitable activities and review questions with mark scheme.
**

Bring your Cambridge iGCSE Physics lessons to life with our expertly designed teaching resources! Each unit is tailored to the latest syllabus, offering ready-to-use lesson plans, engaging experiments, and visually clear notes that save hours of prep time. Whether you’re new to the course or refining your approach, The Science Shelf gives you everything you need to boost student understanding and exam success — all in one place.
