These Ohm’s Law worksheets are designed to challenge students with complex mixed circuits involving five resistors connected in both series and parallel combinations. Learners apply the formula
𝑉=𝐼×𝑅
V=I×R to calculate voltage, current, and equivalent resistance (Rₜ) across multiple branches and loops.

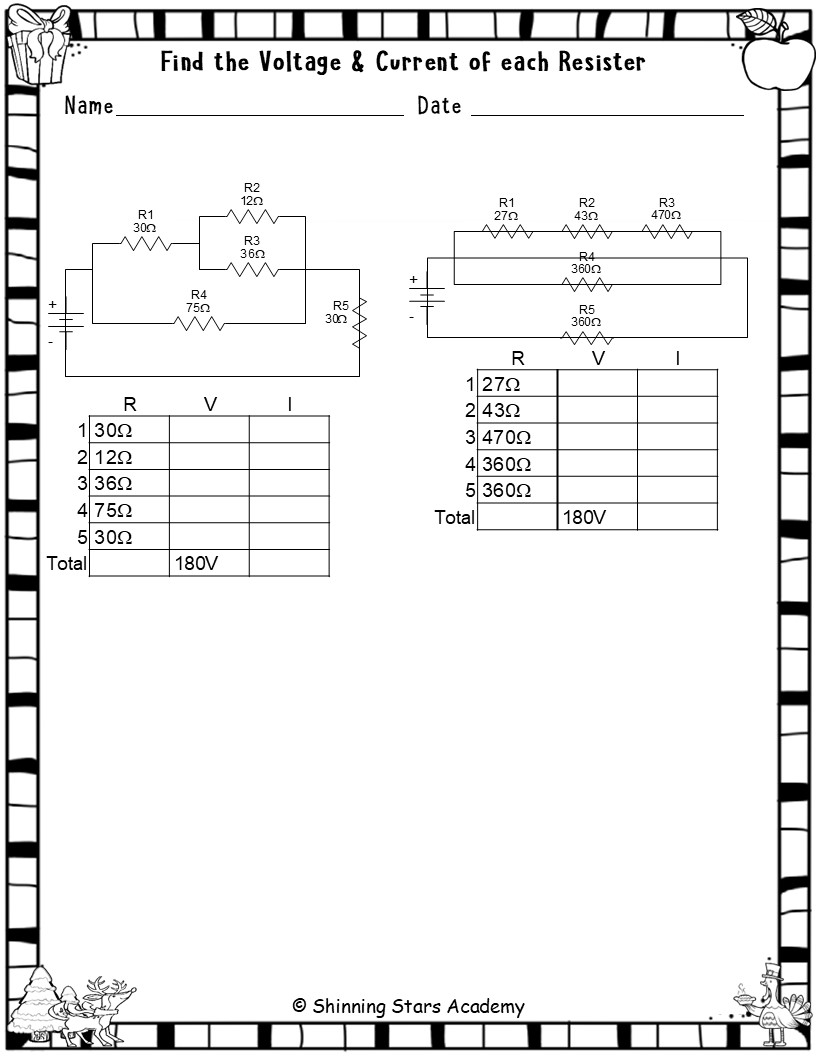

Each problem includes labeled circuit diagrams that guide students in analyzing how current and voltage distribute throughout the network. This worksheet builds upon basic Ohm’s Law principles and develops skills needed for advanced circuit solving.

Key Features:
Practice with five-resistor mixed series/parallel circuits
Apply Ohm’s Law to compute V, I, and Rₜ
Includes visual circuit diagrams and answer keys
Encourages understanding of current division and voltage distribution
Great for STEM, electronics, physics, and engineering students
Reinforces conceptual reasoning and analytical problem-solving

Perfect for classroom instruction, lab practice, or self-study, these worksheets help students gain confidence in applying Ohm’s Law to more intricate resistor networks and prepare them for real-world circuit applications.
