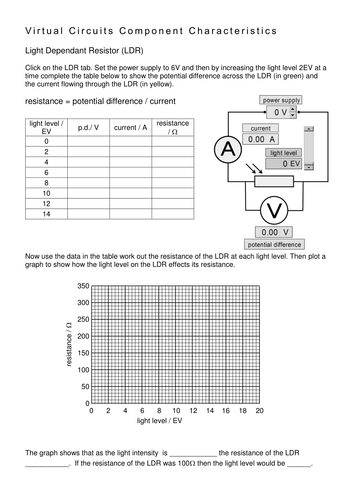

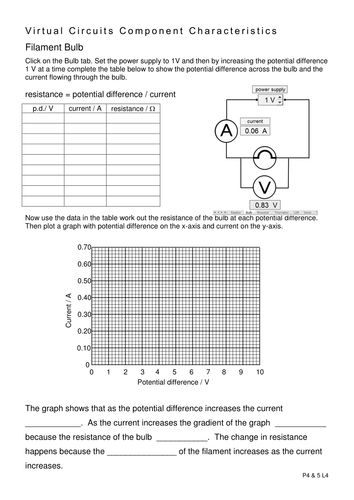

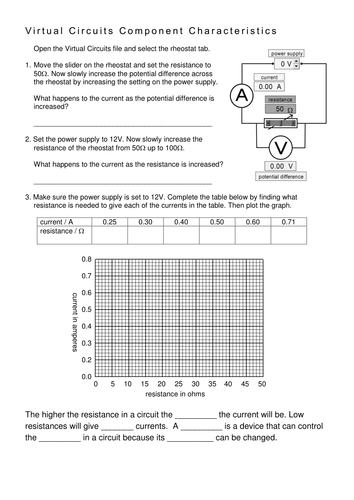

This lovely simulation, developed in excel, allows students to investigate the effect on current and voltage of different circuit components. Click on the tabs at the bottom of the page to choose your component then use the sliders to adjust the supply voltage/resistance etc.

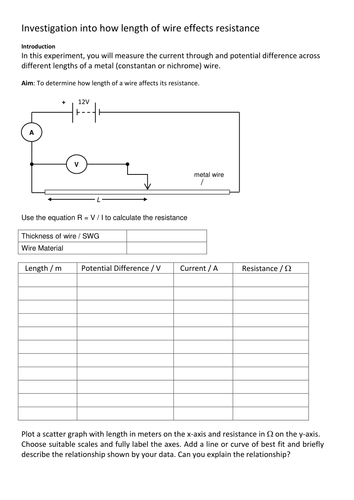

There are accompanying worksheet to go with each component.
This activity is great current vs voltage graphs and works well either as a preliminary to practical work or to reinforce practical work.
Don't forget to click on "enable" when you open up the spreadsheet
There are accompanying worksheet to go with each component.
This activity is great current vs voltage graphs and works well either as a preliminary to practical work or to reinforce practical work.
Don't forget to click on "enable" when you open up the spreadsheet
