AQA GCSE Physics Practicals - Practical 4: I-V Characteristics

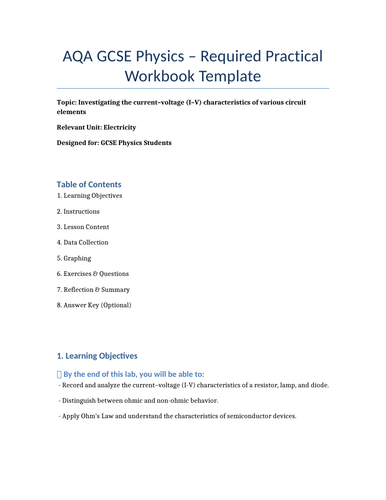

The AQA GCSE Physics Practicals resource for Practical 4: I-V Characteristics provides a comprehensive guide for investigating the current-voltage (I-V) characteristics of various circuit elements. This practical is essential for students studying electricity and aims to deepen their understanding of Ohm’s Law and the behavior of different electrical components, such as resistors, lamps, and diodes. It is an editable Word file that can be easily converted into a PDF, perfect for printing or digital distribution.

Designed for both students and teachers, this resource includes step-by-step instructions, data recording tables, and objective-targeted questions that encourage critical thinking and analysis. Students will perform hands-on experiments and plot I-V graphs for a resistor, lamp, and diode, distinguishing between ohmic and non-ohmic behavior. This resource will not only help students reinforce theoretical knowledge but also develop practical skills for data collection and analysis.

Key features of this practical resource:

• Clear, structured instructions for setting up and conducting the experiment, ensuring accuracy and reliability.
• Data recording tables for students to document voltage, current, and observations for each component.
• Reflection areas to help students analyze the results, discuss any deviations, and suggest improvements.
• Sample questions (MCQs, SAQs, and Worksheet-style) that encourage students to apply their knowledge of I-V characteristics and interpret graphs.
• Teacher notes with important guidance on safety, common errors, and how to enhance student understanding of semiconductor behavior.

Sample Question for Each Type:
MCQ: What indicates ohmic behavior in an I-V graph?
SAQ: Why is the diode’s I-V curve non-linear?
Worksheet: Compare the linear I-V relationship for the resistor with the curved response for the lamp and diode.

This resource provides an interactive, hands-on way for students to explore the fundamental principles of electricity and develop their understanding of circuit components. It is ideal for GCSE Physics students preparing for practical exams and assessments.
Download this editable practical resource today to support your students in mastering I-V characteristics and enhance their practical physics skills.
