Fusion 360 Tutorial:
These simple exercises are great for learning, developing and building confidence in the solid modeling environment. This resource is part of a series of similar exercises.

This resource includes the following:

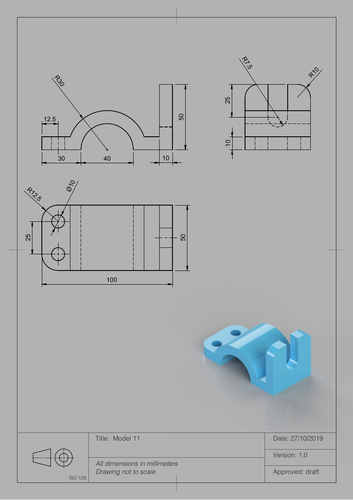

  • Orthographic drawings with dimensions of the object

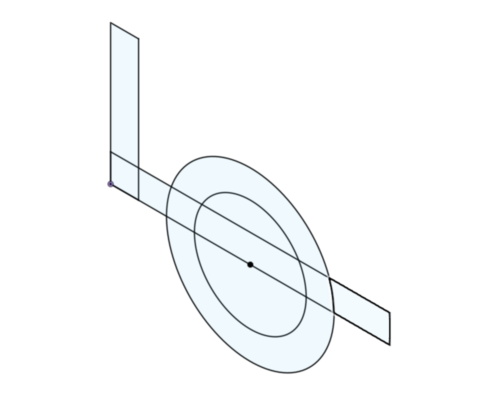

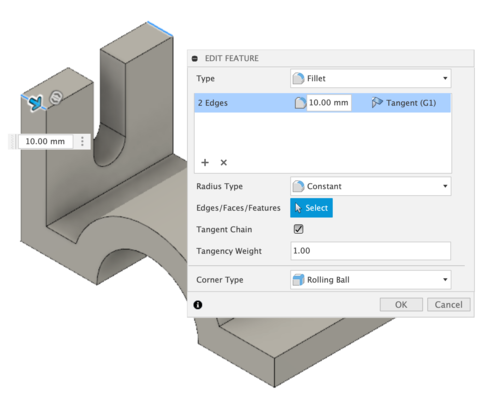

  • Previews of key steps of the process like sketches or dialog boxes
  • A video tutorial (no sound) which means no headphones are required

This tutorial uses the following key skills:

  • Symmetrical extrude
  • Mid-point constraint
  • Smart dimension
  • Extruding using ‘to object’ as extent type
  • Extruding using ‘through all’ as extent type
  • Fillet
  • Project

Difficulty rating ★★☆☆☆
(for a novice)

Get this resource as part of a bundle and save up to 73%

A bundle is a package of resources grouped together to teach a particular topic, or a series of lessons, in one place.
