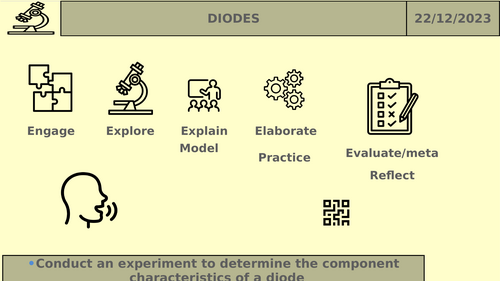

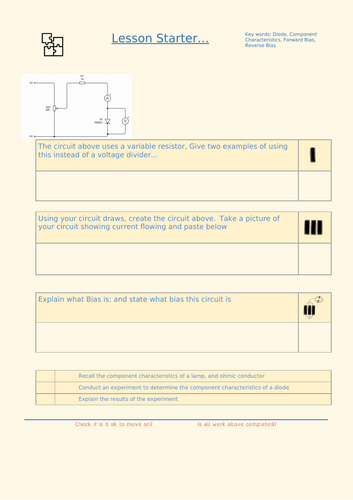

GCSE Electronics – Applications of Diodes: Lesson 2

GCSE Electronics – Applications of Diodes Bundle | Full Module with Lessons

GCSE Electronics – Applications of Diodes Bundle | Full Module with Lessons, Questions & Answers Short Description Complete GCSE Electronics module on Applications of Diodes. Covers I–V characteristics, protection, rectification & zener regulation with lessons + Q&A. Full Description This bundle contains the full Applications of Diodes module for WJEC Eduqas GCSE Electronics (9–1). It includes multiple lessons, worksheets, and exam-style practice resources covering the entire topic, saving you hours of preparation. Topics covered: Forward and reverse bias – how diodes act as one-way components I–V characteristics of silicon diodes and non-linear behaviour Protection diodes – safeguarding components from reversed supply or switch-off voltages Half-wave rectification – using diodes to convert AC into pulsed DC Zener diodes – voltage regulation and power supply applications Why teachers use this bundle: Complete coverage of the Applications of Diodes section of the specification Clear explanations, diagrams, and worked examples for every subtopic Practice questions and full worked answers to support revision and self-assessment Ready-to-use lessons suitable for classwork, homework, or retrieval practice Supports both theory and application, ensuring students are exam-ready This bundle forms part of the wider GCSE Electronics Question Bank & Lesson Series. Other topic bundles are also available, as well as a Full Course Pack containing all 11 topics. Keywords GCSE Electronics, WJEC Eduqas, applications of diodes, diode bundle, rectification, zener diode, voltage regulation, protection diodes, I–V characteristics, revision questions, exam preparation
