Middle School Civil Engineering Lab: 3-page STEM packet on truss bridge load distribution, tension, compression, & structural efficiency math.
Explore structural mechanics, load distribution, tension vs. compression, and geometric efficiency! The Popsicle Stick Truss Bridge Load Challenge (ENG01) challenges middle school student teams to act as civil engineers, designing a lightweight, high-strength truss bridge to span a 30 cm gap and carry maximum load weight.
Students explore tension, compression, structural geometry (triangles vs. rectangles), Warren/Pratt/Howe truss patterns, load transfer vectors, and structural efficiency math!
What Is Included in This 3-Page Packet?

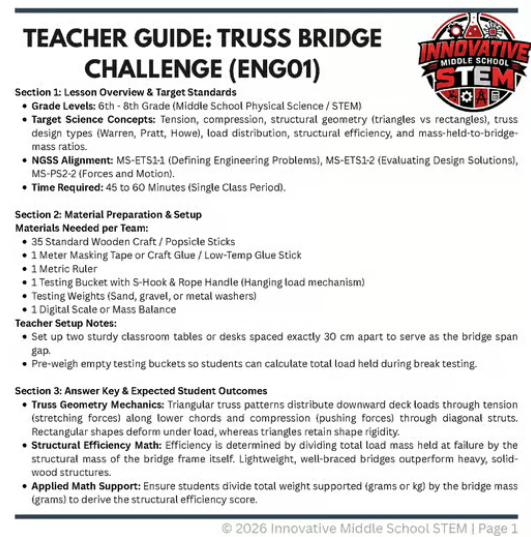

Page 1: Teacher Guide & Lesson Plan: NGSS alignment (MS-ETS1-1, MS-ETS1-2, MS-PS2-2), target science concepts, span setup guide, expected student outcomes, answer keys, and load bucket testing safety tips.
Page 2: Student Mission Card & Blueprint: Real-world civil engineering and highway infrastructure scenario hook, clear material limits box (35 popsicle sticks, tape/glue, metric ruler, digital balance), and a dedicated Truss Bridge Geometry & Vector Schematic sketching zone.
Page 3: Testing Log & Scientific Reflection: Structured Data Testing Table (track unloaded bridge mass in grams, maximum load held at failure in g/kg, and structural failure modes), Applied Math Connection (calculate Structural Efficiency Ratios = Load Mass / Bridge Mass), and physics reflection questions.
Core STEM Skills Covered:
Civil & Structural Engineering, Highway Infrastructure Mechanics
Tension and Compression Vector Analysis, Geometric Triangular Rigidity
Data Logging, Precision Mass Measurement (g/kg), and Ratio Calculations
Failure Mode Analysis and Structural Efficiency Optimization
Why Teachers Love This Resource:
3-Page Professional Layout: Includes a complete Teacher Guide for seamless prep, keeping student lab sheets clean and ready to print!
Low-Cost Materials: Uses simple craft sticks, tape or glue, a bucket, and testing weights/washers.
High-Impact Physics Lab: Turns structural engineering equations into a high-stakes, competitive, and measurable destruction test!
Print-Ready: High-resolution, 3-page PDF format ready for instant printing.
