SP10a Electric Circuits | Edexcel GCSE Physics Topic Mastery Pack

A focused three-component revision and exam practice pack for SP10a, covering the complete Edexcel Separate Science Physics specification for atomic structure, circuit symbols and series vs parallel circuits (P10.1–P10.3).

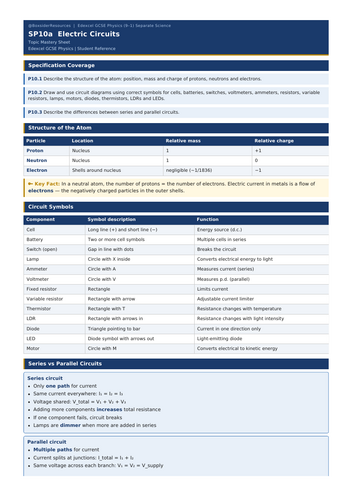

Topic Mastery Sheet covers the position, relative mass and relative charge of protons, neutrons and electrons in a table suitable for direct exam reference; a complete circuit symbols table covering all 13 components required by the specification including thermistors, LDRs, diodes and LEDs; and a side-by-side comparison of series and parallel circuits addressing current, voltage, total resistance and lamp brightness in each type. The explanation of why parallel lamps are as bright as a single lamp (each receives the full supply voltage) is developed from first principles rather than stated as a rule, directly addressing the most common misconception on this topic.

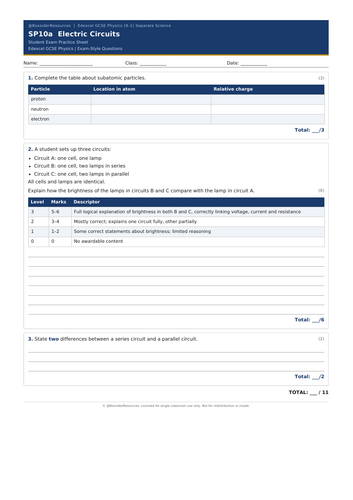

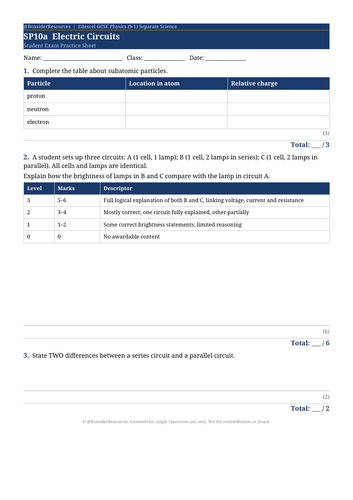

Student Exam Practice Sheet includes an atomic structure completion table; a six-mark Level of Response question on the comparative brightness of identical lamps in circuits A (one lamp), B (two in series) and C (two in parallel),a two-mark question asking for two differences between series and parallel circuits. Question format matches the Edexcel test style.

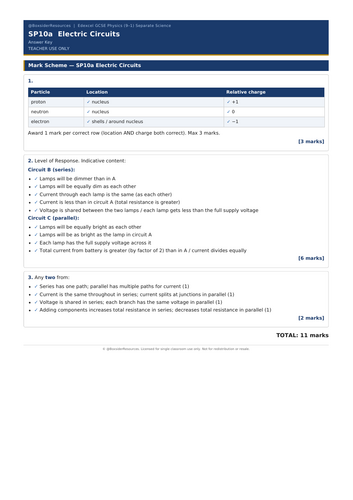

Teacher Answer Key provides a complete mark scheme with indicative content for the LoR question, specifying the required points for each level across both Circuit B (current reduced, voltage shared, lamps dimmer) and Circuit C (full voltage across each branch, lamps as bright as circuit A).

©BoxsiderResources. Licensed for single classroom use by the purchasing teacher. Not for redistribution or resale.
