Resources to support the teaching of Design and Technology and Art and Design: 3D Design created by a practicing teacher with 25+ years experience. If you find these resources useful, please leave a review.

pdf, 638.35 KB
pdf, 638.35 KB

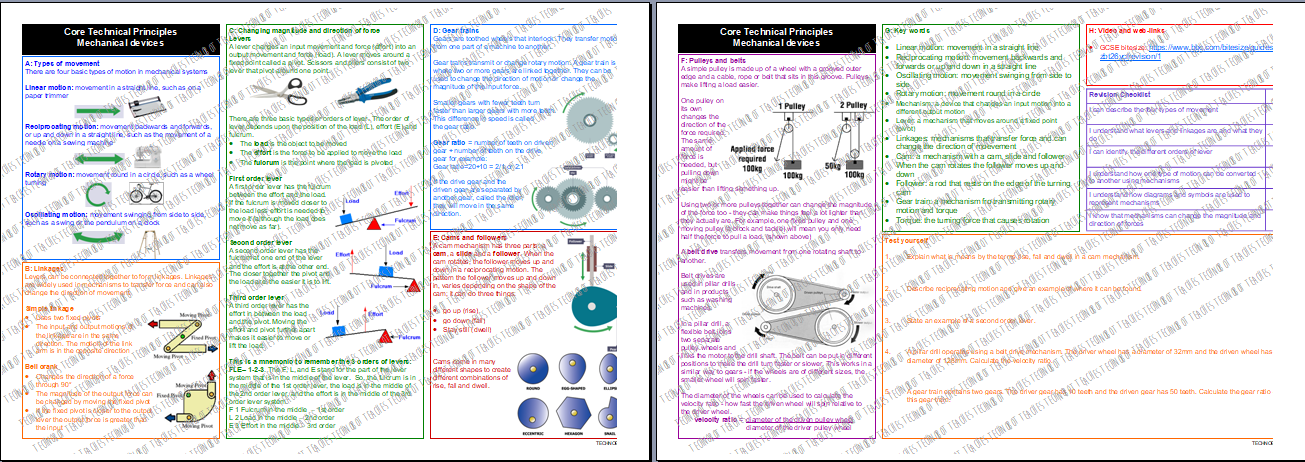

A knowledge organiser to support students’ understanding of mechanical devices, including:

  • types of movement
  • linkages
  • levers
  • gear trains
  • cams and followers
  • pulleys
  • belt drives
    The knowledge organiser also includes keywords with their definitions, video links, example questions and a revision checklist.

Review

5

Something went wrong, please try again later.

zoierobbins1983

a year ago
5

I am interested in buying the bundle but would like to be able to edit them, is this possible? Some of the colours used need to be changed. An excellent resource, a great layout.

Report this resourceto let us know if it violates our terms and conditions.
Our customer service team will review your report and will be in touch.

£3.00
